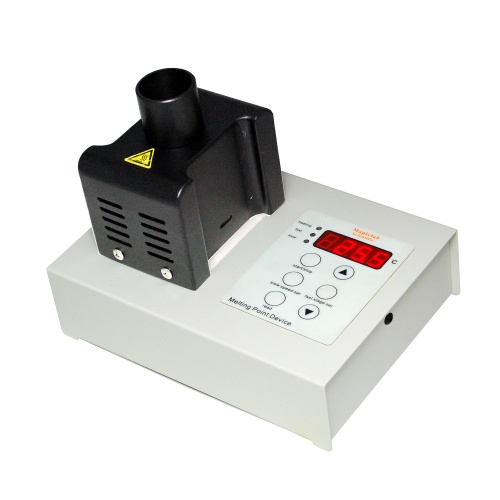

MELTING POINT APPARATUS - DIGITAL

An economic, easy to use yet advanced digital melting point apparatus, utilising a precise thermistor control system to provide an excellent measurement range, with a display of 0.1°C resolution.

The apparatus is designed to simultaneously measure two samples. The internal LED light source, together with clear magnified lens and tilting rear feet, enables users to have a broader and clearer view of the samples being tested. The measurement range is from ambient (room temperature) to 300°C. The device has two heating speeds (fast & slow) to make measurement much quicker and more convenient, and these adjustable ramp rates and hold function make the device ideal for education use.

Temperature range:      Ambient to 300 °C

Temperature accuracy:      ± 1.0 °C at 20 °C, ± 2.5 °C at 300 °C

Display:      Four-digit LED

Display resolution:      0.1 °C

Readout hold:      Yes

Number of samples:      2

Fast Stage Ramp rate:      20 °C /min (fixed)

Slow Ramp rates:      Adjustable between 1 to 10 °C

Dimensions:      160 x 220 x 170 mm (w x d x h)

Net weight:      1.8 kg

Electrical supply:      230V, 50Hz, 75W
