Teltron Dual Beam Tube

Teltron Dual Beam Tube
Product Code :  TTT-200-100Price:  £852.71 /each(Exc. 20% VAT)Saver Points: 1704

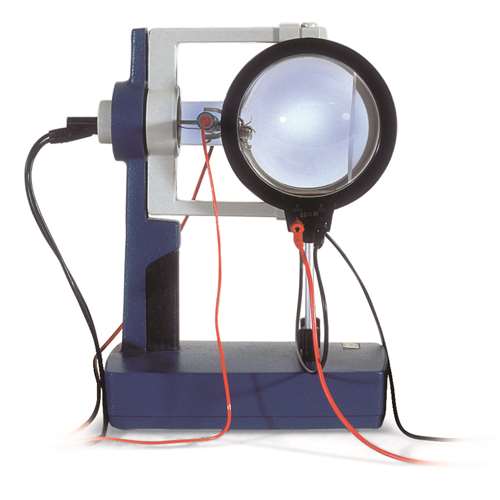

Semi-evacuated electron tube filled with low-pressure helium and containing a tangential and axial electron gun. In the case of tangential bombardment and a perpendicularly aligned magnetic field, the fundamental electron charge-to-mass ratio can be determined from the diameter of the observed beam pattern. In the case of axial bombardment and a co-axial magnetic field, kinetic gas theory (e.g. impact excitation) and particle collisions can be studied through observations of the fine, luminescent beams resulting from excitation of the helium atoms.

Max. filament voltage: 7.5 V
Max. anode voltage: 100 V DC
Anode current: approx. 15 mA at 100 V (anode)
Max. deflection voltage: 50 V DC kg

Product Code :  TTT-200-100
Max. Filament voltage:  7.5 V AC
Anode current:  Apprx. 15mA at 100 V
max. deflection voltage:  50V DC kg
